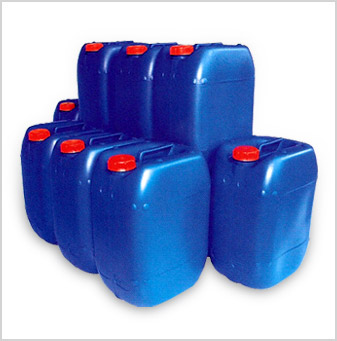

Product Line / Jerrican / 20 Litre Jerrican

The 20 Litre Jerrican is suitable for packing substances, which can generate evolving gas. With degasifying closures , it can avoid overpressure.

Technical Specifications

Product Name 20 Litre Jerrican
Product Code JR-20-12-BL JR-20-12-NT
Product Weight 1.2 KGS. 1.2 KGS.
Tolerance +/-0.3 +/-0.3
Minimum Wall Thickness 1.2 mm 1.2 mm
Un. Number YES YES

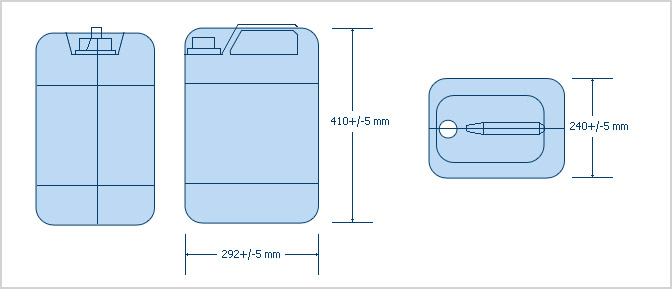

Dimensions
Height 410 mm. +/-5 mm.
Diameter N/A mm N/A mm.
Width 292 mm. +/-5 mm.
Thickness 240 mm. +/-5 mm.
Neck Part 20 mm. +/-1 mm.

Capacity Colour
Brimful 22 litre Blue
Normal 20 Litre Natural White (For JR-20-112-NT)
Un. Number
3H1/Y/200/04
TH/MD005/45/PD



Raw Material
High Molecular Weight High Density Polyethylene (HM-HDPE)
Density = 0.940 - 0.960 g/cm 3
Melt Flow Index (190Oc, LOAD 21.6 kgs) = 1.5 - 12 g/ 10 min

Test Results
  (Un Standard) PDI (Pdi Testing)
Leak Test 0.2 Bar 0.5 Bar
Drop Test 1.2 Meter (-18o c) 2.5 Meter, Ambient Temp
Internal Hydraulic Pressure Test 200 Kpa 200 Kpa
Stacking Test 28 Days 28 Days
