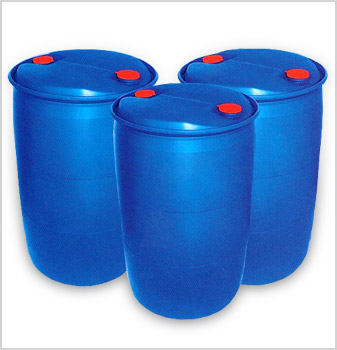

The optimally drainable 200 Litre L-Ring Drum is a one-piece, closed-head design. It is blow molded from high molecular weight high density polyethylene in one operation. There is no risk of product contamination, even under extreme climatic conditions.
|
Technical Specifications
| Product Name |
200 Litre L-Ring Drum |
| Product Code |
LD-200-95 |
LD-200-85 |
| Product Weight |
9.5 Kgs. |
8.5 kgs. |
| Tolerance |
+/-0.3 % |
+/-0.3 % |
| Minimum Wall Thickness |
3.0 mm. |
2.8 mm. |
| Un-Number |
Yes |
Yes |
| Dimensions |
| Height |
930 mm |
| Diameter |
585 mm |
| Closures
|
| Bung Type 70 X 6 mm. |
Thread Pitch = 6 mm. |
| Pilfler Proof Cap (Seal Cap) |
Red Colour |
|
| Capacity
|
Color
|
| Brimful 222 Litre |
Blue |
| Normal 200 Litre |
| Space from surface to top of the drum after filled with water 200 Kg > 5 CM. |
| Raw Material |
| High Molecular Weight High Density Polyethylene (HM-HDPE) |
| Density = 0.940 - 0.960 g/cm3 |
| Melt Flow Index (190oc, Load 21.6 Kgs) = 1.5 - 5 g/10 min. |
| Product Name |
200 Litre L-Ring Drum |
| Product Code |
LD-200-100 |
LD-200-95 |
LD-200-90 |
LD-200-85 |
| Product Weight |
10 KGS |
9.5 KGS |
9.0 KGS |
8.5 KGS |
| Tolerance |
+/-0.3 % |
+/-0.3 % |
+/-0.3 % |
+/-0.3 % |
| Minimum
Wall Thickness |
3.0 mm. |
3.0 mm. |
3.0 mm. |
2.8 mm. |
| Un.Number |
1H1/Y1.4/200 |
1H1/Y1.4/200 |
1H1/Y1.4/200 |
1H1/Y1.4/200 |
| Dimensions |
Tolerance |
| Height |
930 mm. |
+/-10 mm |
| Diameter |
585 mm. |
+/-10 mm |
| Closures
|
| Bung Type 70 X 6 mm. |
Thread Pitch = 6 mm. |
| Pilfler Proof Cap (Seal Cap) |
Red Colour |
| Capacity |
Colour |
| Brimful |
222 Litre |
Blue |
| Normal |
200 Litre |
| Space from surface to top of the drum after filled with water 200 Kg > 5 CM. |
| Raw Material |
| HM-HDPE |
| Density =
0.940-0.960 g/cm 3 |
| Melt Flow Index
(190oc, LOAD 21.6 kgs) = 1.5-12 g/ 10 min |
| Test Results |
| |
(Un Standard) |
PDI (Pdi Testing) |
| Leak Test |
0.2 Bar |
0.5 Bar |
| Drop Test |
1.2 Meter (-18o c) |
2.5 Meter, Ambient Temp |
| Internal Hydraulic Pressure Test |
200 Kpa |
200 Kpa |
| Stacking Test |
555 Kgs, 28 Days |
820 Kgs, 28 Days |
| Equivalent to Un. Standard |
- |
1HI/Y1.4/200 |
| Un. Number |
| 3H1/Y/200/04 |
| TH/MD005/45/PD |
|
|
| |
|
|
