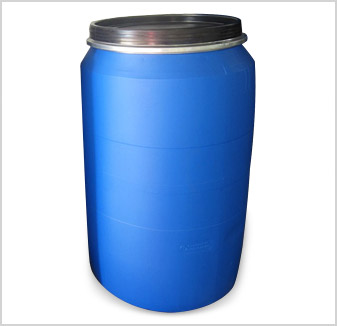

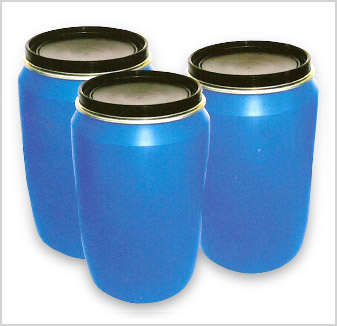

This plastic 200 Litre Open - Top Drum is visually attractive. It is easy for cleaning, and therefore it improves environmental performance, more economical in use, and better protection to meet increasing market demands.

|
Technical Specifications
Product Name |
200 Litre Open Top Drum |
Product Code |
OP - 200 - 75 |
Product Weight |
7.5 KGS |
Tolerance |
+/-3 |
Minimum Wall Thickness |
2.8 mm. |
Dimensions |
Height |
948 mm. |
+/-10 mm. |
Diameter |
580 mm. |
+/-10 mm. |
Closures
|
Clampling Ring |
Galvanized Metal Steel |
Weight 825gm. |
Lid Cap |
Black Colour |
Weight 1200gm. |
Capacity |
Brimful 216 Litre |
Normal 214 Litre |
Raw Material |
High Molecular Weight High Density Polyethylene (HM-HDPE) |
Density = 0.940 - 0.960 g/cm3 |
Melt Flow Index (190oc, Load 21.6 Kgs) = 1.5 - 5 g/10 min. |
Un. Number Registered |
1H2/Y/250/S/04 |
TH/MDO13/46/PD |
|
Test Results |
|
Un Standard |
Pdi Testing |
Leak Test |
n/a |
Water Leak Test 30 min
in Horizontal Position |
Drop Test |
1.2 Meter (-18o c) |
1.5 Meter, Ambient Temp |
Stacking Test |
Loading 550 Kgs, 1 day |
Loading 820 Kgs 28 Days |
|
