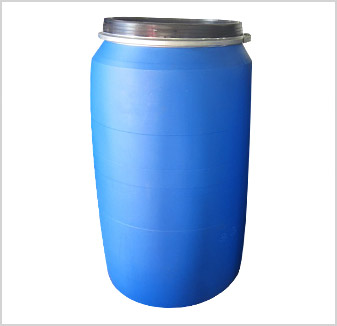

Product Line / Open Top Drum / 235 Litre Open Drum

This plastic 235 Litre Open - Top Drum is visually attractive. It is easy for cleaning, and therefore it improves environmental performance, more economical in use, and better protection to meet increasing market demands.





Technical Specifications

Product Name 235 Litre Open Top Drum
Product Code OP - 235 - 75
Product Weight 7.5 KGS
Tolerance +/- 3 %
Minimum Wall Thickness 2.8 mm.

Dimensions
Height 1005 mm . +/-10 mm.
Diameter 585 mm. +/-10 mm.

Closures
Clampling Ring Galvanized Metal Steel Weight 825gm.
Lid Cap Black Colour Weight 1200gm.

Capacity
Brimful 238 Litre
Normal 235 Litre

Colour
Blue

Raw Material
High Molecular Weight High Density Polyethylene (HM-HDPE)
Density = 0.940 - 0.960 g/cm3
Melt Flow Index (190oc, Load 21.6 Kgs) = 1.5 - 5 g/10 min.

Un. Number Registered
1H2/Y/250/S/04
TH/MDO13/46/PD
Test Results
  Un Standard Pdi Testing
Leak Test n/a Water Leak Test 30 min in Horizontal Position
Drop Test 1.2 Meter (-18o c) 1.5 Meter, Ambient Temp
Stacking Test Loading 550 Kgs, 1 day Loading 820 Kgs 28 Days
